1x4+4awg Terrier Aluminum Conductor Duplex Overhead Service Drop Cable

Name: 1x4+4awg Terrier Aluminum Conductor Duplex Overhead Service Drop Cable
SKU: 0

Duplex Service Drop Cable 4AWG Terrier #4

Code Word: Terrier

Size AWG (Phase Conductors): 4

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

4-4 Terrier Aluminum Conductor Duplex Overhead Service Drop Cable Application

4-4 Terrier Aluminum Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Also Known As:
4-4 terrier aluminium overhead cables, 4 terrier overhead aluminum wire, 4 terrier two conductor cable, 4 terrier 2 conductor power cable, 4 terrier two conductor, 4 terrier aluminum drop, 4 terrier overhead service drop conductors, 4 terrier overhead service conductors.

4-4 Terrier Aluminum Conductor Duplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

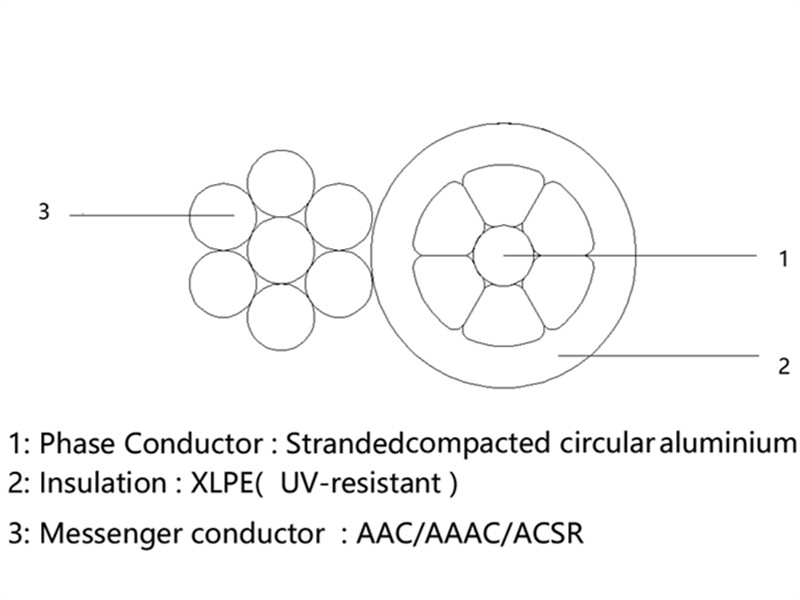

4-4 Terrier Aluminum Conductor Duplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare ACSR messenger. .
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4-4 Terrier Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4-4 Terrier Aluminum Conductor Duplex Overhead Service Drop Cable Parameter

Phase Conductor-Size: 4 AWG
Conductor Strand: 7
Insulation Thickness: 0.045 inches
Neutral Messenger Conductor-Size: 4 AWG
Conductor Strand: 6/1
Outside Diameter: .650 inches
Allowable Ampacity (XLPE): 115 Amps
Weight: 0.0115 lbs per ft
