1x4+4awg Whippet Aluminum Conductor Duplex Overhead Service Drop Cable

Name: 1x4+4awg Whippet Aluminum Conductor Duplex Overhead Service Drop Cable
SKU: 0

Duplex Service Drop Cable 4AWG Whippet #4

Code Word: Whippet

Size AWG (Phase Conductors): 4

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Application

4-4 Whippet Aluminum Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.

Also Known As:
4-4 whippet aluminium overhead cables, 4 whippet overhead aluminum wire, 4 whippet two conductor cable, 4 whippet 2 conductor power cable, 4 whippet two conductor, 4 whippet aluminum drop, 4 whippet overhead service drop conductors, 4 whippet overhead service conductors.

4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

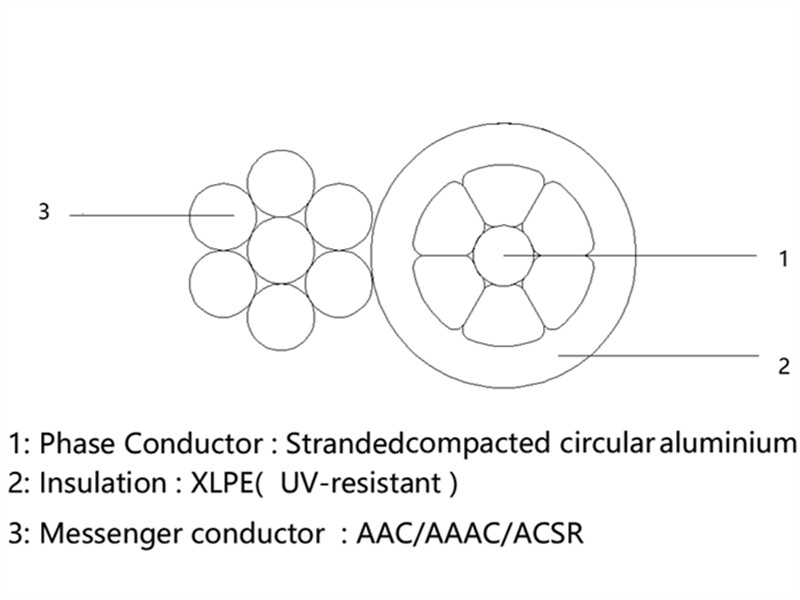

4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare Aluminum Alloy 6201 messenger. .
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Parameter

Code Name	Whippet
Phas Conductor Size/AWG	4
Phase Conductor Stranding	7/w
Phase Conductor Insulation Thickness	45 mls
Bare Neutral Messenger Size/AWG	4
Bare Neutral Strand	7
Bare Neutral Messenger Breaking Strength	1760 Lbs
Weight Per (lb/1000 ft)XLP	107.0 Lbs
Weight (lb/1000 ft) Poly	101.9 Lbs
Ampacity XLP	115 Amps
Ampacity Poly	90 Amps
