1x6+6awg Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable

Name: 1x6+6awg Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable
SKU: 0

Duplex Service Drop Cable 6AWG Pekingese #6

Code Word: Pekingese

Size AWG (Phase Conductors): 6

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

6-6 Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable Application

6-6 pekingeseAluminum Conductor Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.

Also Known As:
6-6 pekingese aluminium overhead cables, 6-6 pekingese overhead aluminum wire, 6-6 pekingese two conductor cable, 6-6 pekingese 2 conductor power cable, 6-6 pekingese two conductor, 6-6 pekingese aluminum drop, 6-6 pekingese overhead service drop conductors, 6-6 pekingese overhead service conductors.

6-6 Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

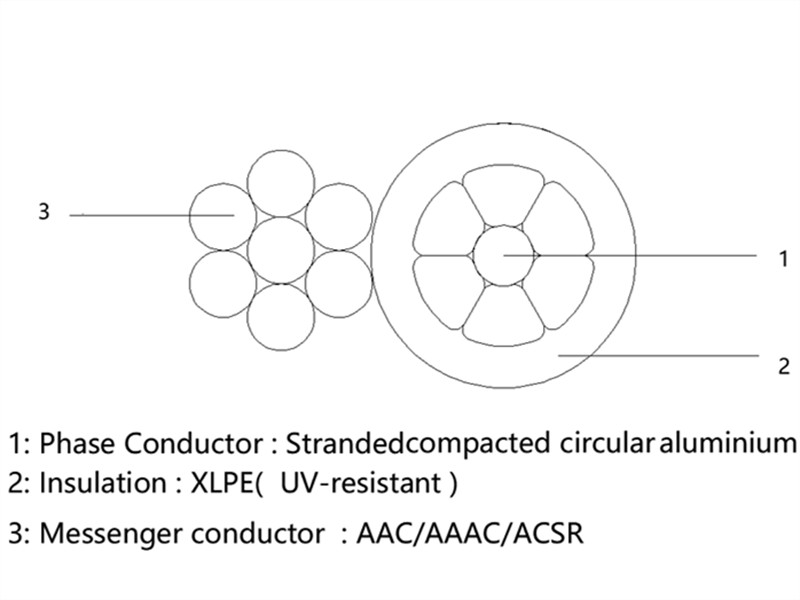

6-6 Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare AAC messenger. .
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

6-6 Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

6-6 Pekingese Aluminum Conductor Duplex Overhead Service Drop Cable Parameter

Code Name	Pekingese
Phase Conductor Size/AWG	6
Phase Conductor Stranding	Solid
Phase Conductor Insulation Thickness	45 mls
Bare Neutral Messenger Size/AWG	6
Bare Neutral Messenger Stranding	7/w
Bare Neutral Messenger Breaking Strength	563 Lbs
Weight Per (lb/1000 ft) XLP	63.5 Lbs
Weight (lb/1000 ft) Poly	61.7 Lbs
Ampacity XLP	85 Amps
Ampacity Poly	70 Amps
