Duplex Cable Aluminum Conductor Overhead Service Drop Cable Wire 600V

Duplex Cable Aluminum Conductor Overhead Service Drop Cable Wire 600V

Conductor: Soft 1350-H19 Aluminum Conductor

Insulation: Thermoplastic Polyethylene or Cross-linked Polyethylene

Voltage: 600V

Number of cores: 2 cores

Package: Export wooden drum & iron wooden drum or as customer require
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


Duplex Overhead Service Drop Cable Wire Application


Aluminum duplex overhead cables are manufactured and designed for overhead power distribution as compared to the conventional bare conductor overhead distribution system.
Duplex aluminium overhead cables have two conductors: one for electrodes, and the other one as a messenger (neutral conductor).
The product is a new type of aerial cable for power transmitting . It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting . It is primarily used on lighting, outdoor lighting,and temporary service for construction . Duplex cables are used in single-phase power lines and the conductor temperatures no exceed 75℃ for polyethylene insulated conductors 90℃ for crosslinked polyethylene (XLPE) insulated conductors.

Duplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts

CONSTRUCTION :

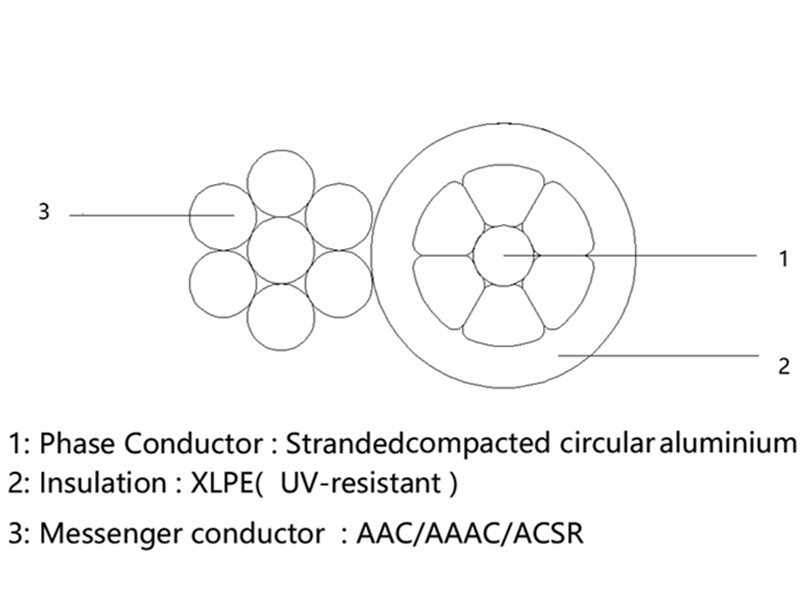

Duplex Overhead Service Drop Cable Wire Construction

duplex-cable

Phase Conductor

Strand or Compressed 1350-H19 Series Aluminum Conductor.

Neutral(Messenger )Conductor

Bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation

Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

Duplex Overhead Service Drop Cable Wire Technical Data

Rated voltage

kV

0.6/1

Test voltage

Veff kV/Hz

4/50

Laying temperature

°C

min. -5

Operating temperature

°C

-30 ~ +90

Conductor temperature

°C

max. +90

Short-circuit temperature

°C/s

max. +250 /5

Bending radius (min.)

mm

20 × Ø of cable

PARAMETER :

Duplex Cable – Aluminium Service Drop Cable Wire Parameter

Code
Name

Phase conductor

Bare Neutral Message

Nominal
Weight
(kg/km)

Allowable
Ampacity

Size &
No.of wires

Insulation
Thickness
(mm)

Nominal Diameter
(mm)

Size
&No.of wires

Rated Strength
(kg)

XLPE

Aluminum

(A)




Bare

OD






AAC Bare Neutral Wire Supported

Pekingese

6-Solid

1.14

4.1

6.4

6-7

255

20.8

72.9

78

Collie

6-7

1.14

4.6

6.9

6-7

255

23.8

72.9

78

Cocker

6-7

1.52

4.6

7.7

6-7

255

32.7

72.9

78

Dachshund

4-Solid

1.14

5.2

7.5

6-7

400

26.8

114.6

103

Spaniel

4-7

1.14

5.9

8.2

6-7

400

29.8

116.1

103

Cairn

4-7

1.52

5.9

8.9

6-7

400

40.2

116.1

103

Doberman

2-7

1.14

7.4

9.7

2-7

612

38.7

184.5

136

Airedale

1-19

1.52

8.4

11.5

1-7

－

56.5

233.6

158

Basset

1/0-7

1.52

9.3

12.4

1/0-7

903

64

294.7

182

Malemure

1/0-19

1.52

9.4

12.5

1/0-7

903

64

294.7

182

AAAC Bare Neutral Wire Supported

Chihuahua

6-Solid

1.14

4.1

6.4

6-7

499

20.8

72.9

78

Vizsla

6-7

1.14

4.6

6.9

6-7

499

23.8

72.9

78

Harrier

4-Solid

1.14

5.2

7.5

4-7

798

26.8

116.1

103

Whippet

4-7

1.14

5.9

8.2

4-7

798

29.8

116.1

103

Schnauzer

2-7

1.14

7.4

9.7

2-7

1270

38.7

184.5

136

Afghan

1/0-7

1.52

9.3

12.4

1/0-7

2023

64

296.1

182

Heeler

1/0-19

1.52

9.4

12.5

1/0-7

2023

64

296.1

182

ACSR Bare Neutral Wire Supported

Setter

6-Solid

1.14

4.1

6.4

6/6/01

540

20.8

72.9

78

Shepherd

6-7

1.14

4.6

6.9

6/6/01

540

23.8

72.9

78

Retriever

6-7

1.52

4.6

7.7

6/6/01

540

32.7

72.9

78

Eskimo

4-Solid

1.14

5.2

7.5

4/6/01

844

26.8

114.6

103

Terrier

4-7

1.14

5.9

8.2

4/6/01

844

29.8

116.1

103

Yorkshirc

4-7

1.52

5.9

8.9

4/6/01

844

40.2

116.1

103

Chow

2-7

1.14

7.4

9.7

2/6/01

1293

38.7

184.5

136

Labrador

1-19

1.52

8.4

11.5

2/6/01

1610

56.5

233.6

158

Bloodhound

1/0-7

1.52

9.3

12.4

1/0-6/1

1987

64

294.7

182

Bull

1/0-19

1.52

9.4

12.5

1/0-6/1

1987

64

294.7

182
