3x1/0+1/0awg Shetland Aluminum Conductor Quadruplex Overhead Service Drop Cable

Name: 3x1/0+1/0awg Shetland Aluminum Conductor Quadruplex Overhead Service Drop Cable
SKU: 0

Overhead Neutral-supported Multiplex Conductor:Shetland

Code Word: Shetland

Size AWG (Phase Conductors): 1/0

Voltage : 600V

Number of cores: 3+1 cores

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

1/0-1/0-1/0-1/0 Shetland Aluminum Conductor Quadruplex Overhead Service Drop Cable Application

1/0-1/0-1/0-1/0 shetland conductor quadruplex overhead service drop cable used to supply 3-phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-tophase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors

Also Known As:
1/0-1/0-1/0-1/0 shetland aluminum quadruplex, 1/0-1/0-1/0-1/0 shetland overhead service drop, 1/0-1/0-1/0-1/0 shetland three phase cable, 1/0-1/0-1/0-1/0 shetland 3 phase cable, 1/0-1/0-1/0-1/0 shetland 3 phase power cable, 1/0-1/0-1/0-1/0 shetland 3 phase extension cord, 1/0-1/0-1/0-1/0 shetland 3 phase aluminum cable, 1/0-1/0-1/0-1/0 shetland 3 phase electrical cable, 1/0-1/0-1/0-1/0 shetland three phase power cable, 1/0-1/0-1/0-1/0 shetland quadruplex wire, 1/0-1/0-1/0-1/0 shetland quadruplex overhead wire, 1/0-1/0-1/0-1/0 shetland overhead service entrance cable.

1/0-1/0-1/0-1/0 Costena Aluminum Conductor Quadruplex Overhead Service Drop Cable Standard

ASTM B-230 Aluminum Wire 1350-H19 for Electrical Purposes.
ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded
ASTM B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
ASTM B-309 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474.CONSTRUCTION :

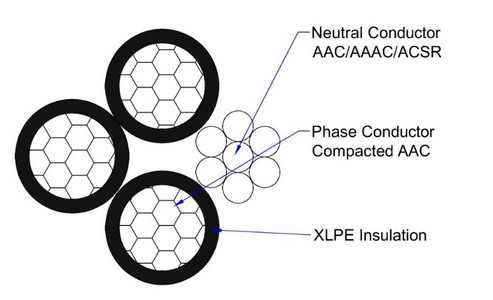

1/0-1/0-1/0-1/0 Shetland Aluminum Conductor Quadruplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger)Conductor	Bare AAAC messenger. Optional constructions include a messenger of AAC or ACSR
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

1/0-1/0-1/0-1/0 Shetland Aluminum Conductor Quadruplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

1/0-1/0-1/0-1/0 Shetland Aluminum Conductor Quadruplex Overhead Service Drop Cable Parameter

Code Name	Phase conductor				Bare Neutral Message		Nominal Weight (kg/km)			Allowable Ampacity
Code Name	Size & No.of wires	Insulation Thick (mm)	Nominal Diameter (mm)		Size & No.of wires	Rated Strength (kg)	XLPE	Aluminum	Total	(A)
			Bare	OD
AAAC Bare Neutral Wire Supported
Bay	6-Solid	1.143	4.115	6.401	6/7	503.485	63	155	217	78
French-conch	6/7	1.143	4.674	6.96	6/7	503.485	71	155	226	78
Cerman-conch	4-Solid	1.143	5.182	7.468	4/7	798.318	79	247	324	103
Arabian	4/7	1.143	5.893	8.179	4/7	784.711	89	247	336	103
Belgain	2/7	1.143	7.417	9.703	2/7	1270.052	115	391	506	136
Saddle	1/19	1.524	8.433	11.481	2/7	1270.052	171	466	637	158
Plow	1/0-7	1.524	9.347	12.395	1/0-7	2023.011	192	624	814	182
Sherland	1/0-19	1.524	9.474	12.522	1/0-7	2023.011	193	624	817	182
Dapple-grey	2/0-7	1.524	10.516	13.564	2/0-7	2444.85	217	786	1005	210
Thoroughbred	2/0-19	1.524	10.643	13.691	2/0-7	2444.85	220	786	1007	210
Dobbin	3/0-7	1.524	11.786	14.834	3/0-7	3079.876	249	991	1238	242
Trotter	3/0-19	1.524	11.938	14.986	3/0-7	3079.876	251	991	1243	242
Pony	4/0-7	1.524	13.259	16.307	4/0-7	3882.73	286	1250	1534	279
Walking	4/0-19	1.524	13.411	16.459	4/0-7	3882.73	289	1250	1539	279
