3x4/0+4/0awg Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable

Name: 3x4/0+4/0awg Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable
SKU: 0

Overhead Neutral-supported Multiplex Conductor:Appaloosa

Code Word: Appaloosa

Size AWG (Phase Conductors): 4/0

Voltage : 600V

Number of cores: 3+1 cores

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

4/0-4/0-4/0-4/0 Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable Application

4/0-4/0-4/0-4/0 appaloosa conductor quadruplex overhead service drop cable used to supply 3-phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-tophase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors

Also Known As:
4/0-4/0-4/0-4/0 appaloosa aluminum quadruplex, 4/0-4/0-4/0-4/0 appaloosa overhead service drop, 4/0-4/0-4/0-4/0 appaloosa three phase cable, 4/0-4/0-4/0-4/0 appaloosa 3 phase cable, 4/0-4/0-4/0-4/0 appaloosa 3 phase power cable, 4/0-4/0-4/0-4/0 appaloosa 3 phase extension cord, 4/0-4/0-4/0-4/0 appaloosa 3 phase aluminum cable, 4/0-4/0-4/0-4/0 appaloosa 3 phase electrical cable, 4/0-4/0-4/0-4/0 appaloosa three phase power cable, 4/0-4/0-4/0-4/0 appaloosa quadruplex wire, 4/0-4/0-4/0-4/0 appaloosa quadruplex overhead wire, 4/0-4/0-4/0-4/0 appaloosa overhead service entrance cable.

4/0-4/0-4/0-4/0 Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

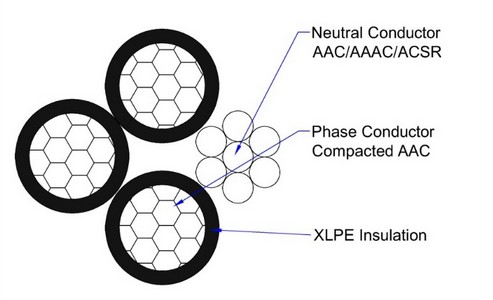

4/0-4/0-4/0-4/0 Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger)Conductor	Bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4/0-4/0-4/0-4/0 Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4/0-4/0-4/0-4/0 Appaloosa Aluminum Conductor Quadruplex Overhead Service Drop Cable Parameter

Size AWG: 4/0

Stranding: 19/w

Insulation Thickness (mils): 0.060

Neutral Size AWG: 4/0

Weight lbs./1000ft: XLP: 1,079

Weight lbs./1000ft: Poly: 1,039

Ampacity: XLP: 275

Ampacity: Poly: 210
