2x1/0+1/0awg Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Name: 2x1/0+1/0awg Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire
SKU: 0

Triplex Service Drop Cable 1/0AWG Murex #1/0

Code Word: Murex

Size AWG (Phase Conductors): 1/0

Voltage: 600V

Number of cores: Triplex

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

1/0-1/0-1/0 Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application

1/0-1/0-1/0 Murex Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

1/0-1/0-1/0 Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard

ASTM B-230 Aluminum Wire 1350-H19 for Electrical Purposes.
ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded
ASTM B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
ASTM B-309 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474. CONSTRUCTION :

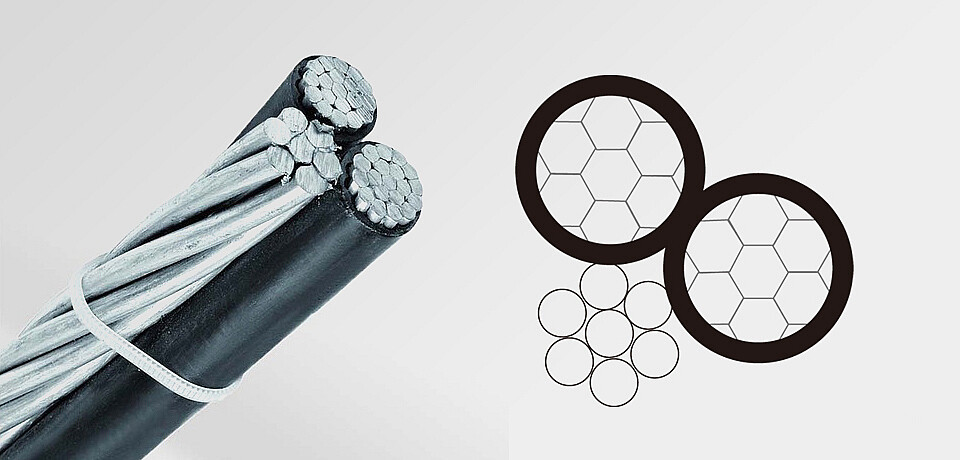

1/0-1/0-1/0 Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare AAC messenger. Optional constructions include a messenger of ACSR or 6201 alloy.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

1/0-1/0-1/0 Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire Technical Data

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

1/0-1/0-1/0 Murex Aluminum Conductor Triplex Overhead Service Drop Cable Wire Parameter

Code Name	Murex
Phase Conductor Material	AAC
Phase Conductor Size (awg)	1/0
Phase Conductor Stranding	7
Phase Conductor insulation Material	XLPE
Phase Conductor Insulation Thickness (mils)	60
Bare Neutral Messenger Material	AAC
Bare Neutral Messenger Size(awg)	1/0
Bare Neutral Messenger Stranding	7
Bare Neutral Messenger Breaking Strength (Lbs)	1990
Weight Per (Lbs/1000 ft)	383
Ampacity (Amps)	205
