2x3/0+3/0awg Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Name: 2x3/0+3/0awg Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire
SKU: 0

Triplex Service Drop Cable 3/0AWG Melita #3/0

Code Word: Melita

Size AWG (Phase Conductors): 3/0

Voltage: 600V

Number of cores: Triplex

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application

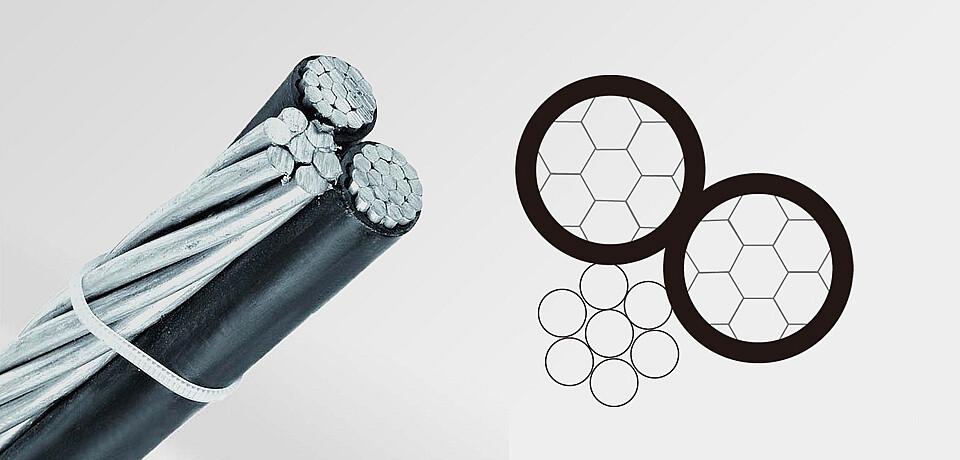

3/0-3/0-3/0 Melita Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

Also Known As:
3/0-3/0-3/0 melita triplex aluminum wire, 3/0-3/0-3/0 melita triplex overhead wire, 3/0-3/0-3/0 melita aluminum triplex, 3/0-3/0-3/0 melita triplex conductor, 3/0-3/0-3/0 melita overhead aluminum wire, 3/0-3/0-3/0 melita aluminium overhead cables, 3/0-3/0-3/0 melita overhead service drop conductor

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger)Conductor	Bare AAC messenger. Optional constructions include a messenger of ACSR or 6201 alloy.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Technical Data

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

3/0-3/0-3/0 Melita Aluminum Conductor Triplex Overhead Service Drop Cable Wire Parameter

Code Name	Melita
Phase Conductor Material	AAC
Phase Conductor Size (awg)	3/0
Phase Conductor Stranding	19
Phase Conductor insulation Material	XLPE
Phase Conductor Insulation Thickness (mils)	60
Bare Neutral Messenger Material	AAC
Bare Neutral Messenger Size(awg)	3/0
Bare Neutral Messenger Stranding	19
Bare Neutral Messenger Breaking Strength (Lbs)	3310
Weight Per (Lbs/1000 ft)	562
Ampacity (Amps)	275
