2x4+4awg Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Name: 2x4+4awg Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire
SKU: 0

Triplex Service Drop Cable 4AWG Barnacles #4

Code Word: Barnacles

Size AWG (Phase Conductors): 4

Voltage: 600V

Number of cores: Triplex

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

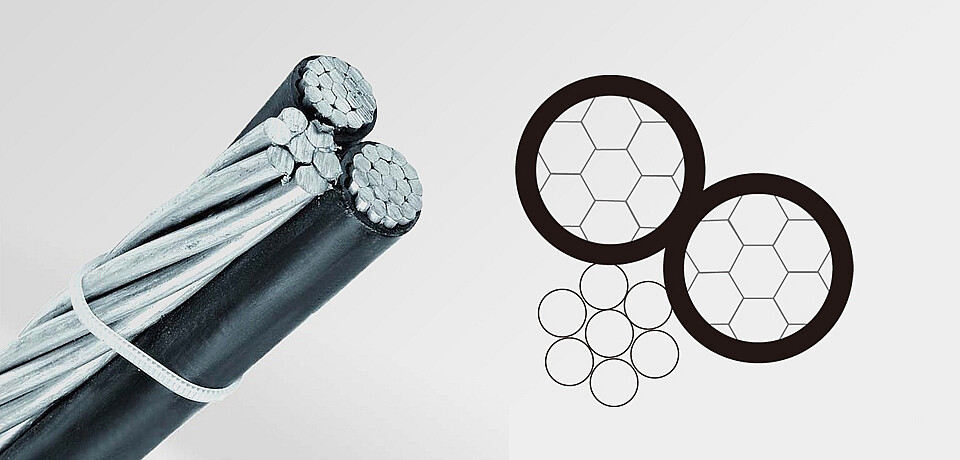

4-4-4 Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application

4-4-4 Barnacles Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. Primarily used for overhead service applications such as street lighting , outerdoor lighting , and temporary service for construction. To be used at votages of 600 V phase to phase or less and at conductor temperatures not to exceed 75ºC for Polyethylene insulated conductors A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

4-4-4 Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

4-4-4 Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare AAAC messenger.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4-4-4 Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4-4-4 Barnacles Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Code Name	Barnacles
Phase Conductor Material	AAC
Phase Conductor Size (awg)	4
Phase Conductor Stranding	7
Phase Conductor insulation Material	XLPE
Phase Conductor Insulation Thickness (mils)	45
Bare Neutral Messenger Material	AAAC
Bare Neutral Messenger Size(awg)	4
Bare Neutral Messenger Stranding	7
Bare Neutral Messenger Breaking Strength (Lbs)	1760
Weight Per (Lbs/1000 ft)	160
Ampacity (Amps)	115
