2x4+4awg Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire

Name: 2x4+4awg Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire
SKU: 0

Triplex Service Drop Cable 4AWG Prawn #4

Code Word: Prawn

Size AWG (Phase Conductors): 4

Voltage: 600V

Number of cores: Triplex

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

4-4-4 Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application

4-4-4 Prawn Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

4-4-4 Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

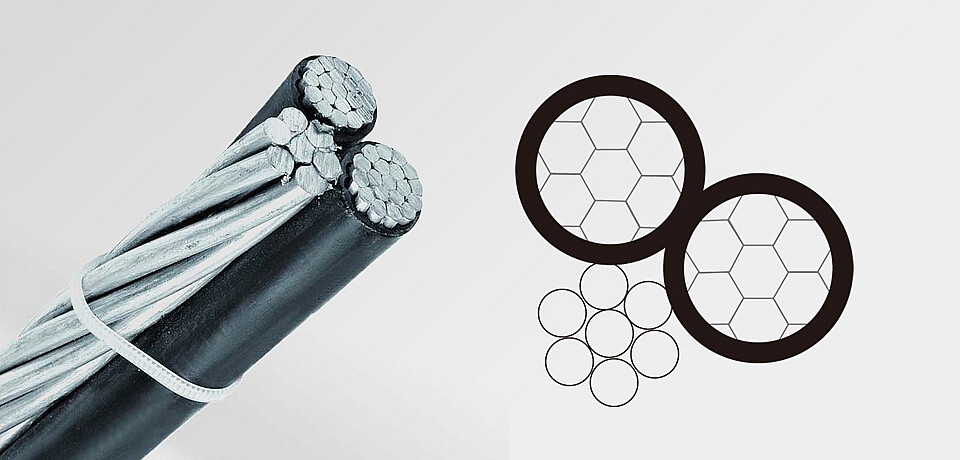

4-4-4 Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare AAAC messenger.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

4-4-4 Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire Technical Data

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

4-4-4 Prawn Aluminum Conductor Triplex Overhead Service Drop Cable Wire Parameter

Code Name	Prawn
Phase Conductor Material	AAC
Phase Conductor Size (awg)	4
Phase Conductor Stranding	1
Phase Conductor insulation Material	XLPE
Phase Conductor Insulation Thickness (mils)	45
Bare Neutral Messenger Material	AAAC
Bare Neutral Messenger Size(awg)	4
Bare Neutral Messenger Stranding	7
Bare Neutral Messenger Breaking Strength (Lbs)	1760
Weight Per (Lbs/1000 ft)	154
Ampacity (Amps)	115
