Triplex Cable Aluminum Conductor Overhead Service Drop Cable Wire 600V

Name: Triplex Cable Aluminum Conductor Overhead Service Drop Cable Wire 600V
SKU: 0

Triplex Cable—Aluminium Service Drop Cable Wire

Conductor: Soft 1350-H19 Aluminum Conductor

Insulation: Cross-linked Polyethylen

Voltage: 600V

Number of cores: Triplex

Package : Export wooden drum & iron wooden drum or as customer require

Phone: +8613204662621

WhatsApp: +8613204662621

E-mail: yongbencable@163.com

- // PRODUCT DETAILS // -

Triplex Overhead Service Drop Cable Wire Application

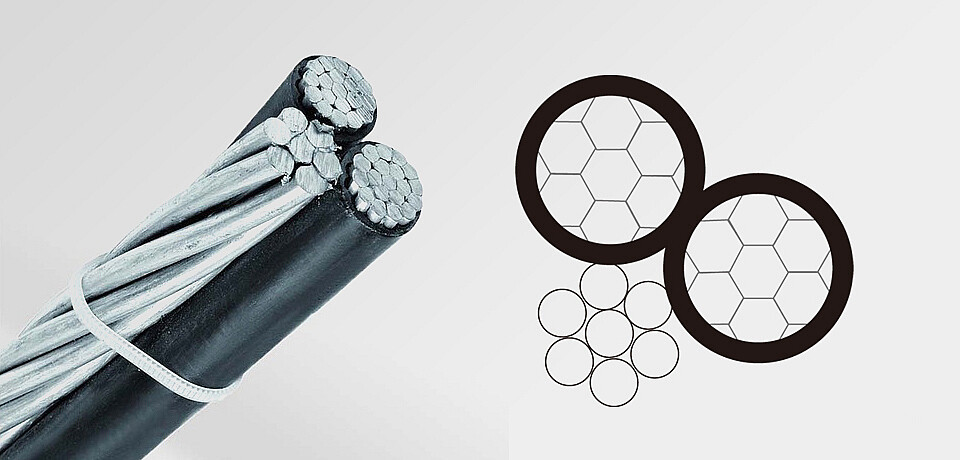

Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C. A bare messenger wire of this electrical cable is bonded closely on the two insulated aluminum conductors, which are individually insulated with black cross-linked polyethylene for protection.

Triplex Overhead Service Drop Cable Wire Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts

CONSTRUCTION :

Triplex Overhead Service Drop Cable Wire Construction

Phase Conductor	Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger )Conductor	Bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
Insulation	Black Cross Linked Polyethylene (XLP) Insulation.

TECHNICAL DATA :

Triplex Overhead Service Drop Cable Wire Technical Data

Rated voltage	V	600
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PARAMETER :

Triplex Cable——Aluminium Service Drop Cable Wire Parameter

AAC Neutral-Messenger

Code Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft. (lbs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Covering Thickness (mils.)	Size (AWG)	Stranding	Rated Strength (lbs.)	POLY	XLP	POLY	XLP
Patella	6	7	45	6	7	563	103	103	70	85
Oyster	4	7	45	4	7	881	156	160	90	115
Clam	2	7	45	2	7	1350	232	238	120	150
Murex	1/0	7	60	1/0	7	1990	373	383	160	205
Purpura	1/0	19	60	1/0	7	1990	370	380	160	205
Nassa	2/0	7	60	2/0	7	2510	461	472	185	235
Trophon	2/0	19	60	2/0	7	2510	456	467	185	235
Melita	3/0	19	60	3/0	19	3310	562	562	215	275
Portunus	4/0	19	60	4/0	19	4020	696	696	245	315
Nannynose	336.4	19	80	336.4	19	6146	1118	1118	325	420

ACSR Neutral-Messenger

Code Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft. (lbs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Covering Thickness (mils.)	Size (AWG)	Stranding	Rated Strength (lbs.)	POLY	XLP	POLY	XLP
Paludina	6	1	45	6	6/1	1190	109	110	70	85
Voluta	6	7	45	6	6/1	1190	116	118	70	85
Scallop	4	1	45	6	6/1	1190	143	146	90	115
Whelk	4	1	45	4	6/1	1860	165	169	90	115
Strombus	4	7	45	6	6/1	1190	156	160	90	115
Periwinkle	4	7	45	4	6/1	1860	172	176	90	115
Cockle	2	7	45	4	6/1	1860	227	233	120	150
Conch	2	7	45	2	6/1	2850	261	267	120	150
Janthina	1/0	7	60	2	6/1	2853	365	376	160	205
Neritina	1/0	7	60	1/0	6/1	4380	419	430	160	205
Ranella	1/0	19	60	2	6/1	2853	362	372	160	205
Cenia	1/0	19	60	1/0	6/1	4380	416	428	160	205
Cavolinia	2/0	7	60	1	6/1	3550	451	462	185	235
Runcina	2/0	7	60	2/0	6/1	5310	519	530	185	235
Clio	2/0	19	60	1	6/1	3550	437	444	185	235
Triton	2/0	19	60	2/0	6/1	5310	514	526	185	235
Aega	3/0	19	60	1/0	6/1	4380	549	559	215	275
Mursia	3/0	19	60	3/0	6/1	6620	626	633	215	275
Cerapus	4/0	19	60	2/0	6/1	5310	670	678	245	315
Zuzara	4/0	19	60	4/0	6/1	8350	777	785	245	315
Limpet	336.4	19	80	336.4	18/1	8680	1147	1161	325	420

6201 Alloy Neutral-Messenger

Code Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft. (lbs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Covering Thickness (mils.)	ACSR Equivalent (AWG)	Stranding	Rated Strength (lbs.)	POLY	XLP	POLY	XLP
Minex	6	1	45	6	7	1110	101	102	70	85
Hippa	6	7	45	6	7	1110	105	107	70	85
Artemia	4	1	45	6	7	1110	132	134	90	115
Prawn	4	1	45	4	7	1760	152	154	90	115
Crab	4	7	45	6	7	1110	141	144	90	115
Barnacle	4	7	45	4	7	1760	157	160	90	115
Solaster	2	7	45	4	7	1760	212	216	120	150
Shrimp	2	7	45	2	7	2800	238	243	120	150
Sandcrab	1/0	7	60	2	7	2800	341	348	160	205
Gammarus	1/0	7	60	1/0	7	4460	384	390	160	205
Echinus	1/0	19	60	2	7	2800	336	342	160	205
Leda	1/0	19	60	1/0	7	4460	378	384	160	205
Dungenese	2/0	7	60	2/0	7	5390	474	481	185	235
Cyclops	2/0	19	60	2/0	7	5390	467	473	185	235
Fulgar	3/0	19	60	1/0	7	4460	518	525	215	275
Flustra	3/0	19	60	3/0	7	6790	588	596	215	275
Arca	4/0	19	60	2/0	7	5390	632	640	245	315
Lepas	4/0	19	60	4/0	7	8560	716	725	245	315
