ACSR Fox Conductor

Aluminum Conductor Steel Reinforced ACSR Fox Conductor

Code name: Fox

Corss section area: 42.8mm2

Standard: BS 215 Part 2

Conductor Material: Aluminum and Steel
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -

ACSR Fox Conductor Application:


ACSR – The full name: Aluminum Conductor Steel Reinforced. Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
FEATURES :

ACSR Fox Conductor Features:

With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.
CONSTRUCTION :

ACSR Fox Conductor Construction:

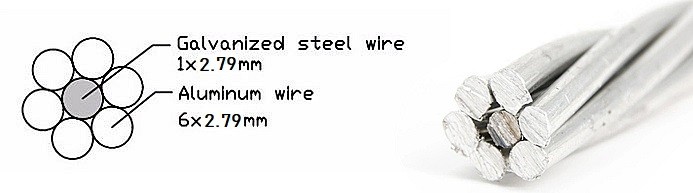

ACSR fox conductor strands 6 aluminums and 1 steel. But their diameter is the same, and they are 2.79 mm. We can know the overall diameter is 8.37 mm. From the standard, we can know the nominal aluminum area of acsr fox conductor is 36.7 mm2. When you want to buy acsr fox conductor, you should pay attention to this point. It isn’t suitable for the standard, and it is reasonable. The total sectional area is 42.8 mm2. After the cabling, the total linear mass is 148kg/km.
Through the test, the calculated breaking load should be 13.21kN. At the 20℃, calculate D.C. resistance should be 0.7812.
acsr-fox
PARAMETER :

ACSR Fox Conductor 35mm2 Parameter

Code nameacsr fox conductor
Stranding structureAl. No.6
Al. Dia.2.79
St. No.1
St. Dia2.79
Sectional area of aluminummm 236.7
Total sectional areamm 242.8
Overall diametermm8.37
Total Weightkg/km148
Calculated breaking loadkN13.21
Calculate D.C resistance at 20 ℃Ω/km0.7812
