HFIX Wire Application

Name: 450/750V Halogen Free Polyolefine Insulated Wire HFIX
SKU: 0

This wire is mainly used in wiring of electric apparatus and equipment under AC 450/750V grade and halogen free flame-retardant polyolefin insulated wire.

HFIX Wire Standards:

KS C 3341: Flame retardant and low toxic cross-linked polyefin power cable and insulated wire

CONSTRUCTION :

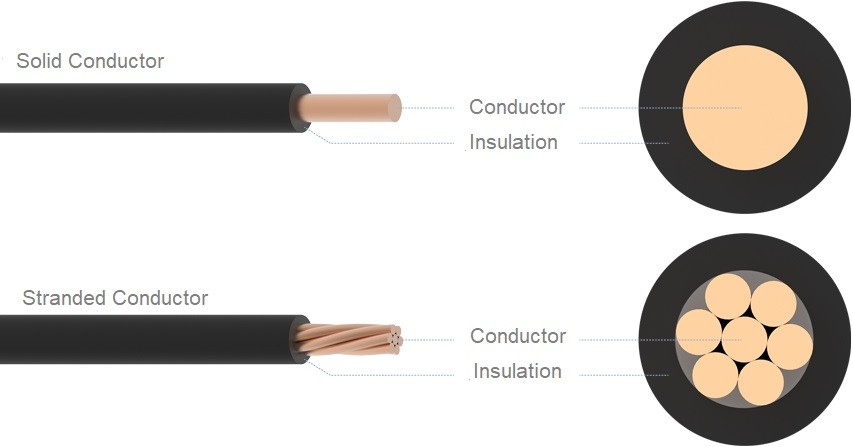

HFIX Wire Construction

– Conductor : Annealed copper wire for electrical use (solid wire, circular copper wire, circular compressed copper wire)
– Insulator : Low-toxicity flame-resistant polyolefin
– Color of insulator : Black, white, red, green, yellow, blue
– Highest temperature : 90 ℃

TECHNICAL :

HFIX Wire Technical Data
- Working voltage: 450/750
- Test voltage: 2500 volts
- Maximum operating temperature:90º C

PARAMETER :

HFIX Wire Parameter

Conductor		Nominal Insulation Thickness	Overall Diameter		Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 90℃	Test Voltage	Approx. Weight	Standard Length
Nominal Sectional Area	Conductor Class	Nominal Insulation Thickness	Lower Limit	Upper Limit	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 90℃	Test Voltage	Approx. Weight	Standard Length
mm2	Conductor Class	mm	mm		Ω/km	MΩ/km	V/5min	kg/km	m
1.5	1	0.7	2.6	3.3	12.1	0.011	2500	20	300
1.5	2	0.7	2.7	3.4	12.1	0.01	2500	20	300
2.5	1	0.8	3.2	4	7.41	0.01	2500	40	300
2.5	2	0.8	3.3	4.1	7.41	0.009	2500	40	300
4	1	0.8	3.6	4.6	4.61	0.0085	2500	50	300
4	2	0.8	3.8	4.7	4.61	0.0077	2500	50	300
6	1	0.8	4.1	5.2	3.08	0.007	2500	70	300
6	2	0.8	4.3	5.4	3.08	0.0065	2500	70	300
10	1	1.0	5.3	6.6	1.83	0.007	2500	120	300
10	2	1.0	5.6	7	1.83	0.0065	2500	120	300
16	2	1.0	6.4	8	1.15	0.005	2500	170	300
25	2	1.2	8.1	10.1	0.727	0.005	2500	260	300
35	2	1.2	9	11.3	0.524	0.0043	2500	350	300
50	2	1.4	10.6	13.2	0.387	0.0043	2500	480	300
70	2	1.4	12.1	15.1	0.268	0.0035	2500	670	300
95	2	1.6	14.1	17.6	0.193	0.0035	2500	920	300
120	2	1.6	15.6	19.4	0.153	0.0032	2500	1,160	300
150	2	1.8	17.3	21.6	0.124	0.0032	2500	1,430	300
185	2	2.0	19.3	24.1	0.0991	0.0032	2500	1,780	300
240	2	2.2	22	27.5	0.0754	0.0032	2500	2,320	300
300	2	2.4	24.5	30.6	0.0601	0.0030	2500	2,930	300

※ Conductor rating : Grade 1 (Solid wire), grade 2 (stranded wire)
