H05Z-U H07Z-U Wire Application:

Name: H05Z-U H07Z-U Wire
SKU: 0

For the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90º C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

H05Z-U H07Z-U Wire Standards:

DIN VDE 0282-9

CONSTRUCTION :

H05Z-U H07Z-U Wire Construction:

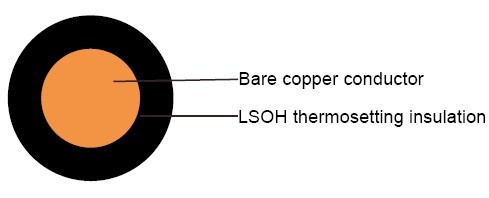

Conductor : Solid bare copper
Insulation: LSOH ( low smoke, zero halogen) Insulation

TECHNICAL :

H05Z-U H07Z-U WireTechnical Data:

Working voltage: 300/500v (H05Z-U), 450/750v (H07Z-U)
Test voltage: 2000 / 2500 volts
Flexing bending radius: 15 x Ø
Static bending radius: 10 x Ø
Flexing temperature: +5º C to +90º C
Short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1

PARAMETER :

H05Z-U H07Z-U Wire Parameter :

No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal CopperWeight	Nominal Weight	Minimum insulation resistance at 90 °C
# x mm²	mm	mm	kg/km	kg/km	MΩ·km
		H05Z-U
1 x 0.5	0.6	1.9-2.4	4.8	8	0.015
1 x 0.75	0.6	2.1-2.6	7.2	12	0.012
1 x 1	0.6	2.2-2.8	9.6	14	0.011
		H07Z-U
1 x 1.5	0.7	2.6-3.3	14.4	20	0.011
1 x 2.5	0.8	3.2-4.0	24	30	0.01
1 x 4	0.8	3.6-4.6	38	45	0.0085
1 x 6	0.8	4.1-5.2	58	65	0.007
1 x 10	1	5.3-6.6	96	105	0.007

H05Z-U H07Z-U Wire

H05Z-U H07Z-U Wire Application:

H05Z-U H07Z-U Wire Standards:

H05Z-U H07Z-U Wire Construction:

H05Z-U H07Z-U WireTechnical Data:

H05Z-U H07Z-U Wire Parameter :
