Screened MV ABC Cable Application:

Name: 6.35/11kV Screened MV ABC Cable–Aerial Bundled Cables to AS/NZS 3599.1 (AL/XLPE /CWS/HDPE)
SKU: 0

MV ABC Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

Cable Standards

AS/NZS 3599.1

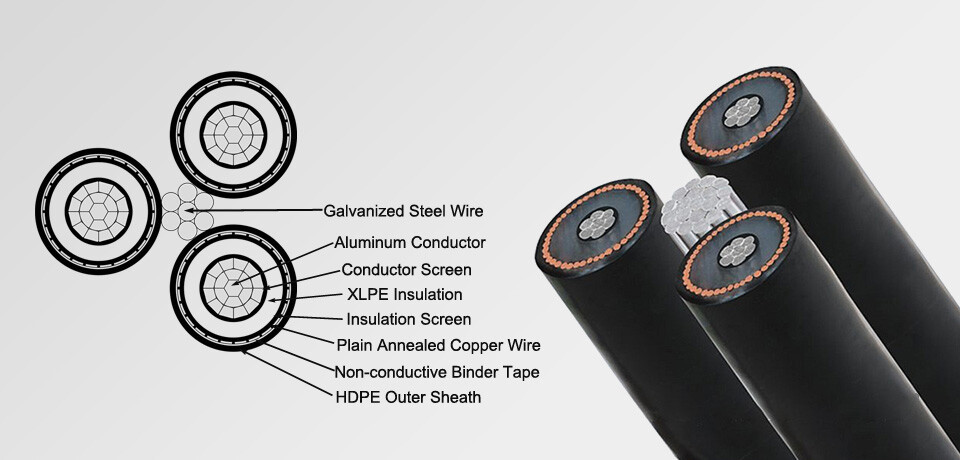

CONSTRUCTION :

Screened MV ABC Cable Construction

Phase Conductor	Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen	Extruded Semi-conductive Layer.
Insulation	XLPE.
Insulation Screen	Extruded Semi-conductive Layer.
Metallic Screen	Copper wire screen
Separator	Semi-conductive swellable tape.
Outer Sheath	HDPE.
Support Conductor	Galvanized steel wires.
Assembly	XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay

TECHNICAL DATA :

Temperature :

- Normal operation 90°C.

- Emergency over load conditions 130°C.

- Short circuit conditions 250°C.

PARAMETER :

MV ABC Aerial Bundled Cables to (AL/XLPE /CWS/HDPE)

Number of Cores x Nominal Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Copper Wire Screen Stranding	Nominal Sheath Thickness	Galvanized Steel Wire Stranding	Nominal Overall Diameter	Weight	Continuous current rating, A
Number of Cores x Nominal Cross Section	Nominal Conductor Diameter	Nominal Insulation Thickness	Nominal Insulation Screen Thickness	Copper Wire Screen Stranding	Nominal Sheath Thickness	Galvanized Steel Wire Stranding	Nominal Overall Diameter	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	No/mm	mm	No/mm	mm	kg/km	A	A	A
Light duty screen
3x35	6.9	3.4	0.8	25/0.85	1.8	7/2.00	54.1	1820	99	140	165
3x35	6.9	3.4	0.8	25/0.85	1.8	19/2.00	58.1	2130	100	145	165
3x50	8.1	3.4	0.8	25/0.85	1.8	19/2.00	60.4	2300	120	170	200
3x70	9.7	3.4	0.8	25/0.85	1.8	19/2.00	63.6	2570	150	215	250
3x95	11.4	3.4	0.8	25/0.85	1.8	19/2.00	67	2900	180	260	305
3x120	12.8	3.4	0.8	25/0.85	1.8	19/2.00	69.8	3190	205	300	355
3x150	14.2	3.4	0.8	25/0.85	1.9	19/2.00	73	3530	235	340	400
3x185	15.7	3.4	0.8	25/0.85	1.9	19/2.00	76	3890	265	390	460
Heavy duty screen
3x35	6.9	3.4	0.8	40/0.85	1.8	7/2.00	54.1	2050	99	140	165
3x35	6.9	3.4	0.8	40/0.85	1.8	19/2.00	58.1	2360	100	145	165
3x50	8.1	3.4	0.8	23/1.35	1.8	19/2.00	62.4	2820	120	175	200
3x70	9.7	3.4	0.8	32/1.35	1.8	19/2.00	65.6	3440	150	215	250
3x95	11.4	3.4	0.8	39/1.35	1.8	19/2.00	69	4030	180	260	305
3x120	12.8	3.4	0.8	39/1.35	1.8	19/2.00	71.8	4320	205	300	355
3x150	14.2	3.4	0.8	39/1.35	1.9	19/2.00	75	4670	230	340	400
3x185	15.7	3.4	0.8	39/1.35	1.9	19/2.00	78	5020	265	390	460
