Screened MV ABC Cable Application:

Name: 6.35/11kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502
SKU: 0

Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at votages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylence insulated conductors or 90℃ for crossliked polyethylene(XLPE) insulated conductors

Cable Stansards

IEC 60502

CONSTRUCTION :

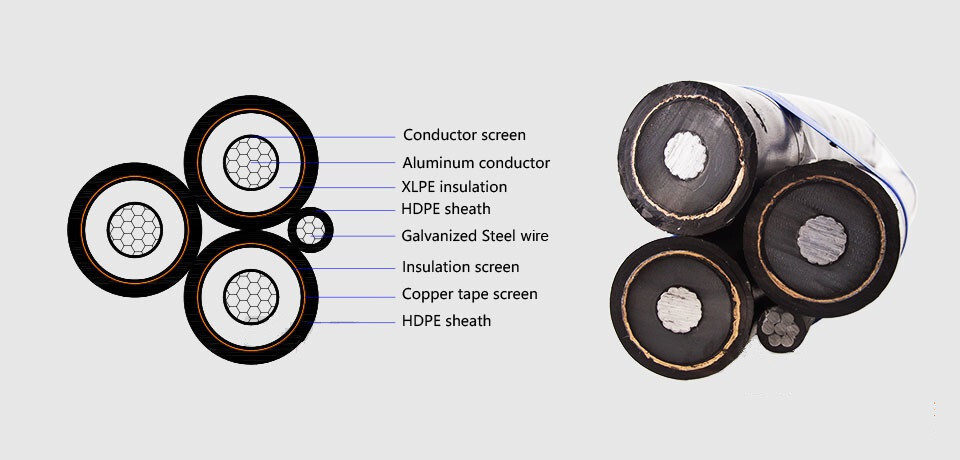

Screened MV ABC Cable Construction

Phase Conductor	Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen	Extruded Semi-conductive Layer.
Insulation	XLPE.
Insulation Screen	Extruded Semi-conductive Layer.
Metallic Screen	Copper wire screen or copper tape screen
Separator	Semi-conductive swellable tape.
Outer Sheath	HDPE.
Support Conductor	Galvanized steel wires.
Assembly	XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay

TECHNICAL DATA :

Temperature :

- Normal operation 90°C.

- Emergency over load conditions 130°C.

- Short circuit conditions 250°C.

PARAMETER :

6.35/11kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502

NO.Cores X Nominal Cross Section	Phase Conductor		Messenger Suspension Unit			Contiuous Current Rating at 300C Ambient Temp
NO.Cores X Nominal Cross Section	Stranding	Nominal Sectional Area	Stranding	Nominal Sectional Area	Breaking Load	Contiuous Current Rating at 300C Ambient Temp
No.×mm²	No.×mm	mm2	No.×mm	mm2	KN	A
3X50 + 1X25	19/1.78	50	7/3.0	50	60	116
3X70 + 1X50	19/2.14	70	7/3.15	50	62	210
3X95+ 1X50	19/2.52	95	7/3.0	50	60	173
3X185+1X120	37/2.52	185	7/4.67	120	150	259
3X150 +1X50	37/2.25	150	7/3.15	50	62	365
3X240 +1X50	61/2.25	240	7/3.15	50	62	500
