  • 3x6+6awg Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable

›

3x6+6awg Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable

Overhead Neutral-supported Multiplex Conductor:Chola

Code Word: Chola

Size AWG (Phase Conductors): 6

Voltage : 600V

Number of cores: 3+1 cores

Package : Export wooden drum & iron wooden drum or as customer require
Phone: +8613204662621
WhatsApp: +8613204662621
E-mail: yongbencable@163.com
Contact Us

- // PRODUCT DETAILS // -


6-6-6-6 Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable Application


6-6-6-6 chola aluminum conductor quadruplex overhead service drop cable used to supply 3-phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-tophase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors

Also Known As:
6-6-6-6 chola aluminum quadruplex, 6-6-6-6 chola overhead service drop, 6-6-6-6 chola three phase cable, 6-6-6-6 chola 3 phase cable, 6-6-6-6 chola 3 phase power cable, 6-6-6-6 chola 3 phase extension cord, 6-6-6-6 chola 3 phase aluminum cable, 6-6-6-6 chola 3 phase electrical cable, 6-6-6-6 chola three phase power cable, 6-6-6-6 chola quadruplex wire, 6-6-6-6 chola quadruplex overhead wire, 6-6-6-6 chola overhead service entrance cable.

6-6-6-6 Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable Standard


• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600VoltsCONSTRUCTION :

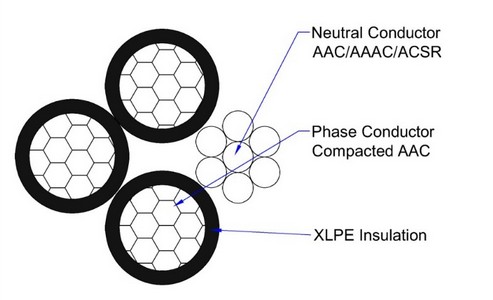

6-6-6-6 Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable Construction

Phase Conductor

Strand or Compressed 1350-H19 Series Aluminum Conductor.

Neutral(Messenger )Conductor

Bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation

Black Cross Linked Polyethylene (XLP) Insulation.



quadruplex TECHNICAL DATA :

6-6-6-6 Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable Technical Data

Rated voltage

kV

0.6/1

Test voltage

Veff kV/Hz

4/50

Laying temperature

°C

min. -5

Operating temperature

°C

-30 ~ +90

Conductor temperature

°C

max. +90

Short-circuit temperature

°C/s

max. +250 /5

Bending radius (min.)

mm

20 × Ø of cable

PARAMETER :
6-6-6-6 Chola Aluminum Conductor Quadruplex Overhead Service Drop Cable Parameter

Phase Conductor-Size: 6 AWG
Conductor Strand: 7
Insulation Thickness: 0.045 inches
Neutral Conductor-Size: 6 AWG
Conductor Strand: 6/1
Allowable Ampacity: 75 Amps
Weight: 0.162 lbs per ft
